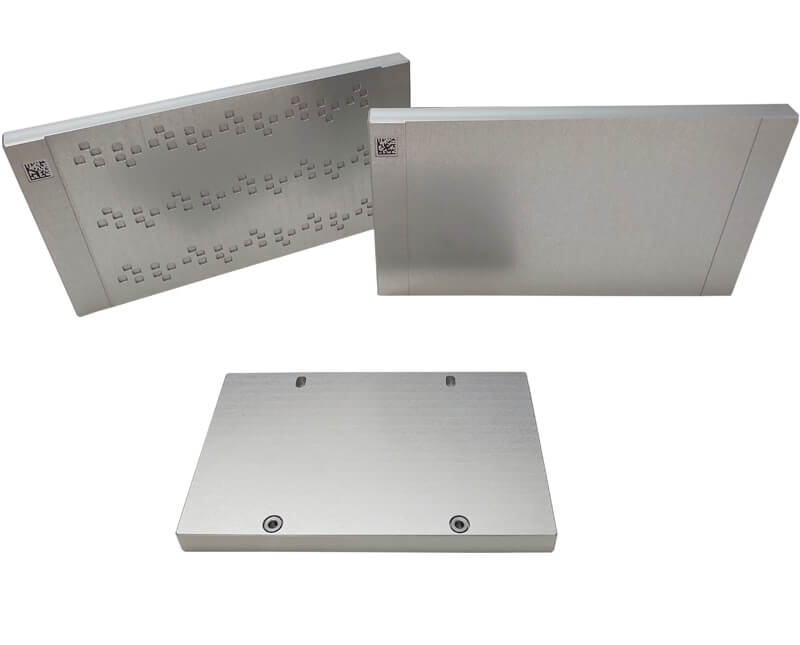

Aluminium Support Tools
Our aluminium support tools provide stable backing during PCB assembly and help reduce common production issues. They improve stages such as stencil printing and component placement. They also limit board warping, flexing and inconsistent heat spread, which improves process stability and output quality.
The anodised aluminium build delivers long service life under frequent use. This helps maintain reliable performance through busy production schedules and supports lower operating costs over time.
Specifications:

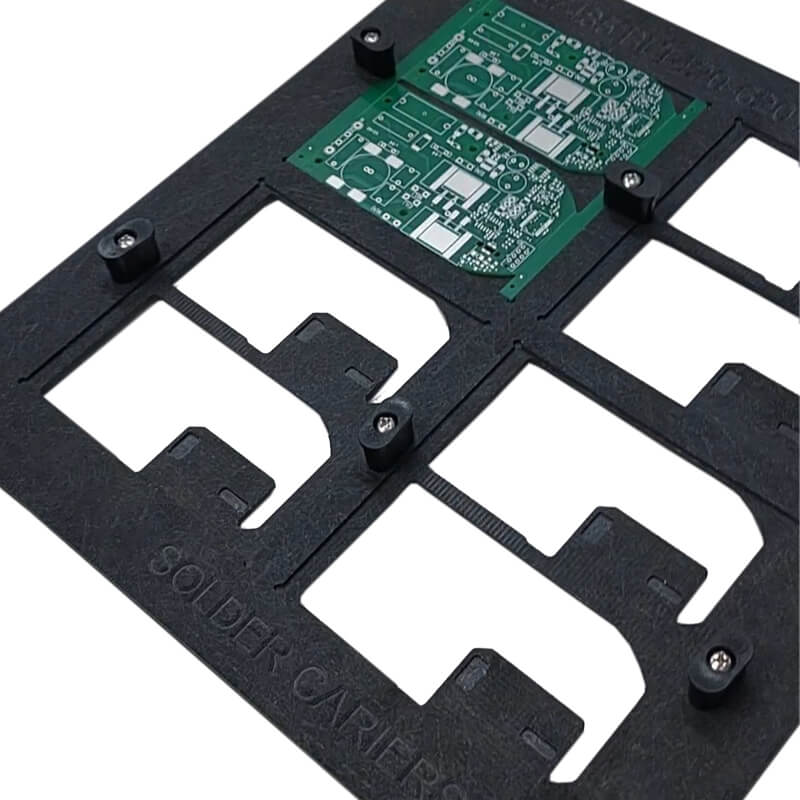

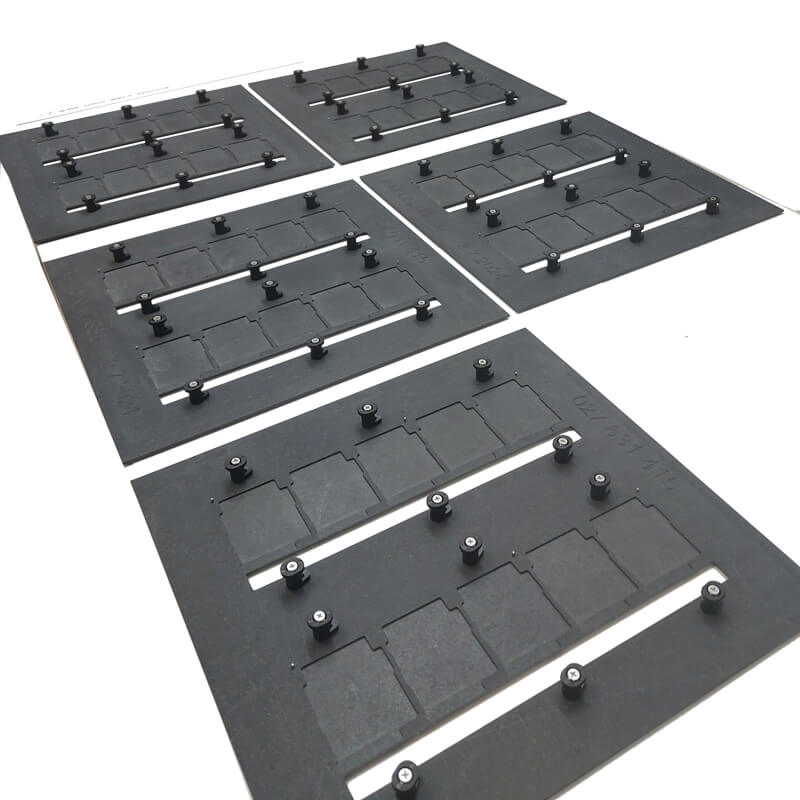

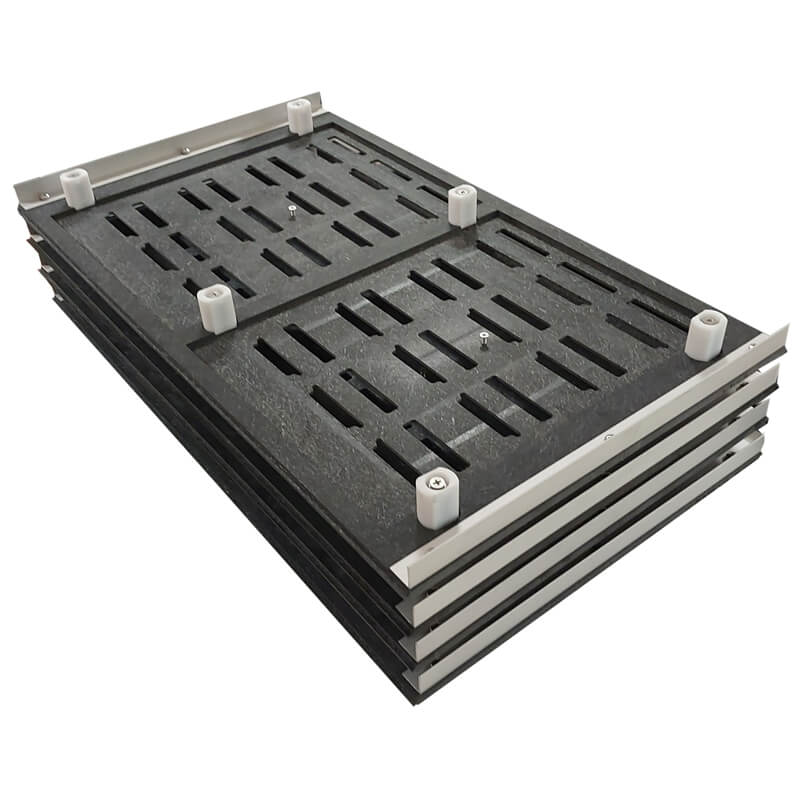

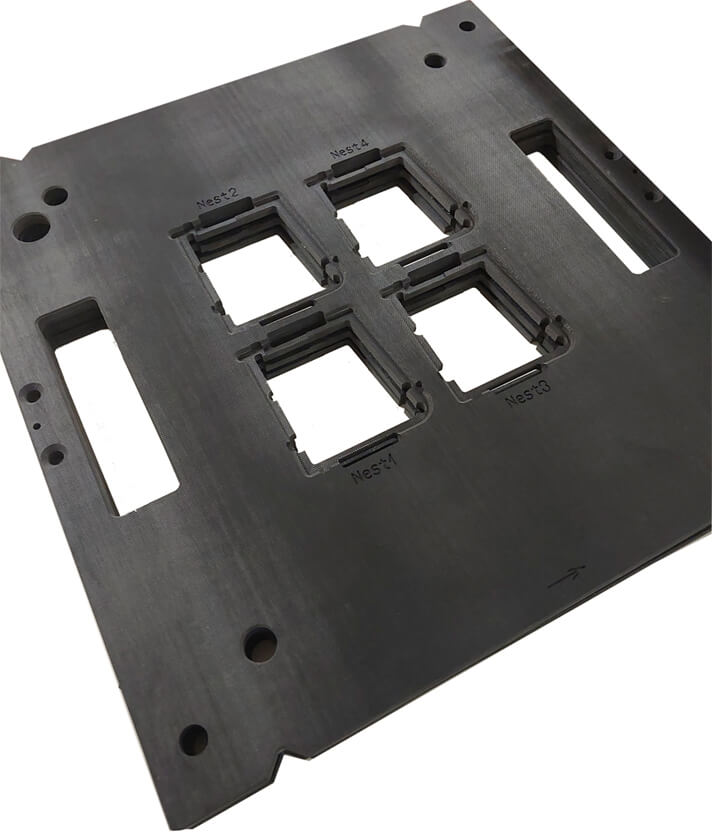

PCB carriers
PCB carriers provide controlled support for boards as they move through assembly, inspection or soldering. They protect the board and keep each stage of the process stable. They ensure safe passage through production.
Extended Stencil life:These products reduce stencil wear. This lowers maintenance needs and reduces unplanned stoppages. Users gain longer stencil service life and lower running costs.
Improve print quality:Our carriers help keep boards flat and correctly positioned during solder paste printing. This produces even paste coverage across every pad. The result is fewer misprints, fewer defects, less rework and stronger overall yield.
Reduced risk of short circuits:The design limits the spread of paste residue into unwanted areas. This lowers the chance of shorts and contamination. Assemblies become more reliable and overall quality improves.
Specifications:
PCB Wave Solder Pallets
Wave Soldering Pallets
Wave soldering pallets support smooth, efficient PCB assembly. They help increase throughput, keep key components in the right position and support reliable soldering of through hole parts.
They also provide accurate masking for areas on the underside that must stay clear of solder. Only the required sections meet the solder wave. The pallet guides the board safely through each stage of the process.
Specifications:
